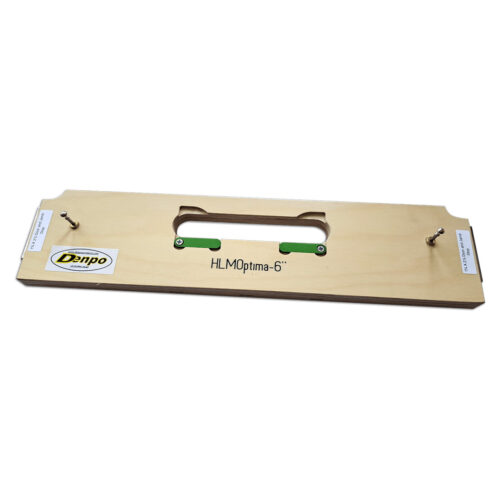

Door Hinge Single Template HLMO 6″

HLMO Concealed Invisible Hinge is designed to work for both the door and jamb with using only one template. This allows you to do mortise cuts on both interior and exterior jamb. This unique template provides both length and width sizes by simply adjusting the guides according to the cut that has to be accomplished. It is a precision instrument that saves time, eliminates costly errors and provides a professional quality job. This template works on 1⅜”, 1¾ and 2¼ thick doors.

This unique template is made of 3/4″ Russian Baltic Birch Plywood 18mmV2SSMG 13 ply.
The 6/32 machine screws on the hinge guides are held by a metal insert into the wood base.

Use template guide 17/32 I.D by 5/8 and ½ router bit.
