Cal-Royal CR3D44 Single Hinge

Cal-Royal CR3D44 Single Hinge

$154.95
Speed up your installation process with the ‘ALL-IN-ONE’ SINGLE HINGE CAL ROYAL CR3D44 Template:
  • Accommodates for Interior or Exterior Doors
  • Accommodates for Left and Right Doors
  • Accommodates for Door and Jamb
  • Adjustable router guides allow for Deep and Shallow Mortise cuts
  • Quick set-up Compression Spring Nails will fasten the template in place ensuring consistency and accuracy when routing
  • Dust exports underneath the face of the jig designed to extract the accumulation of dust

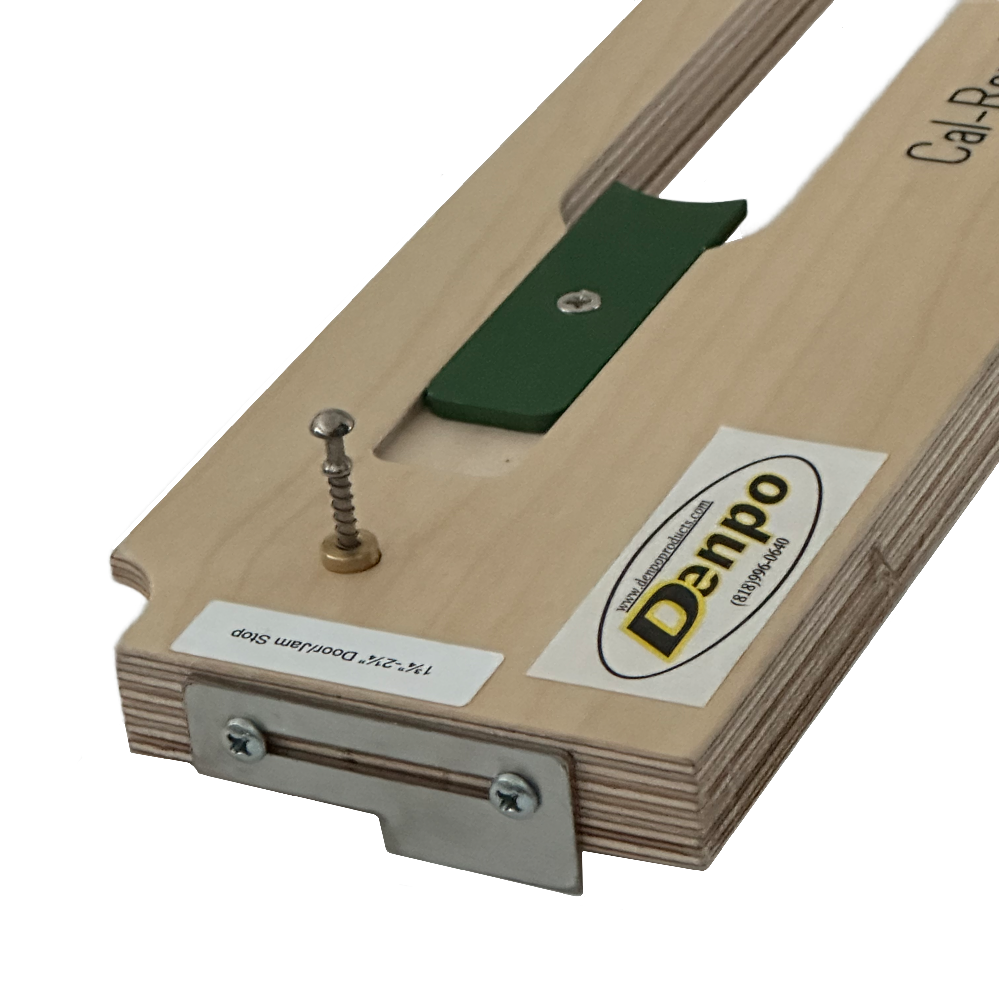

  • Functions on Door Thicknesses of 1¾” and 2¼" by adjusting/sliding the door stops on the side of the jig
This unique template is made of 3/4″ Russian Baltic Birch Plywood 13 ply. 6/32 machine screws on the hinge guides are held by a metal insert into the wood base. Use template guide 17/32 I.D by 5/8 O.D with 1/2 router bit.
