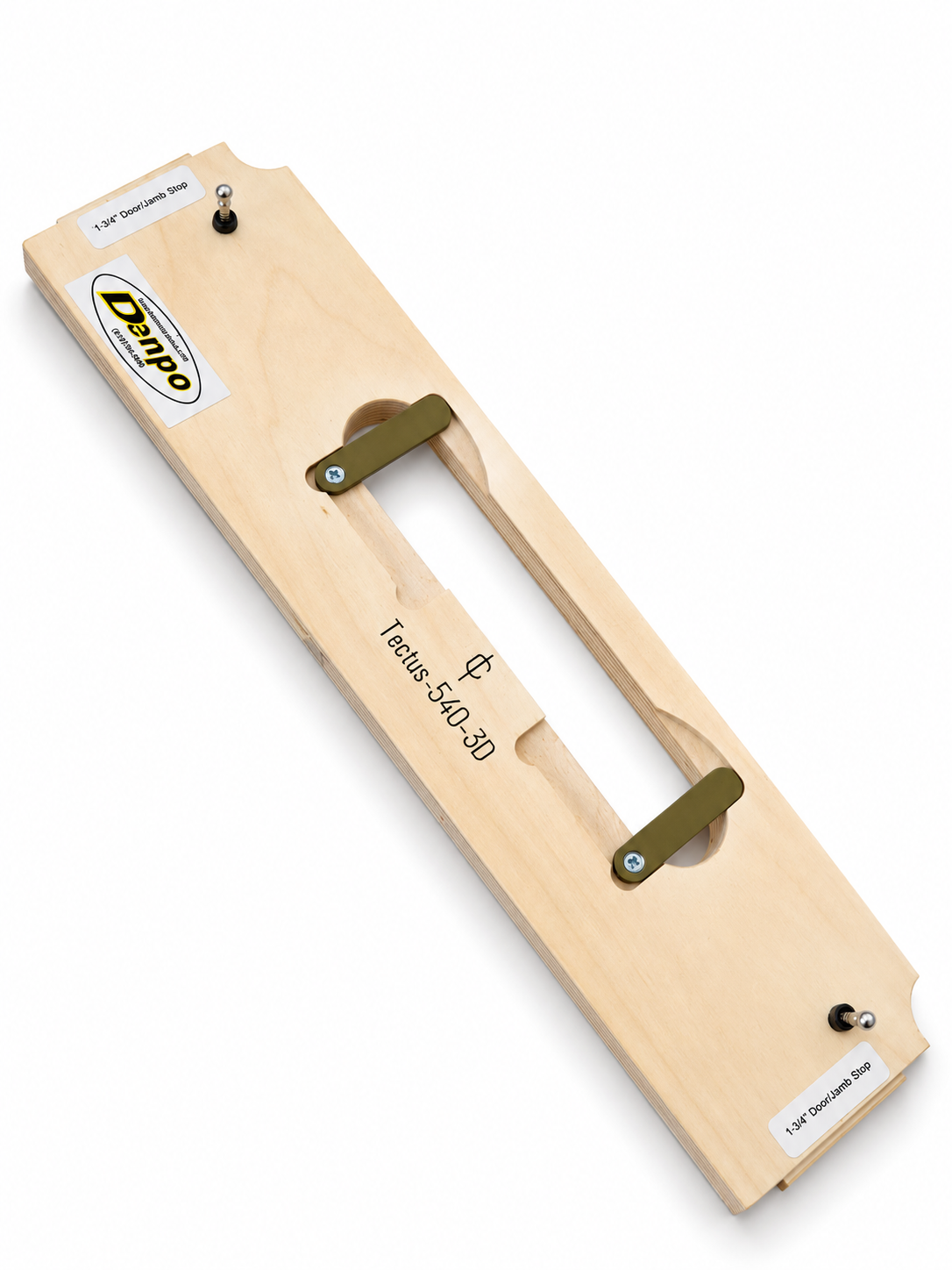

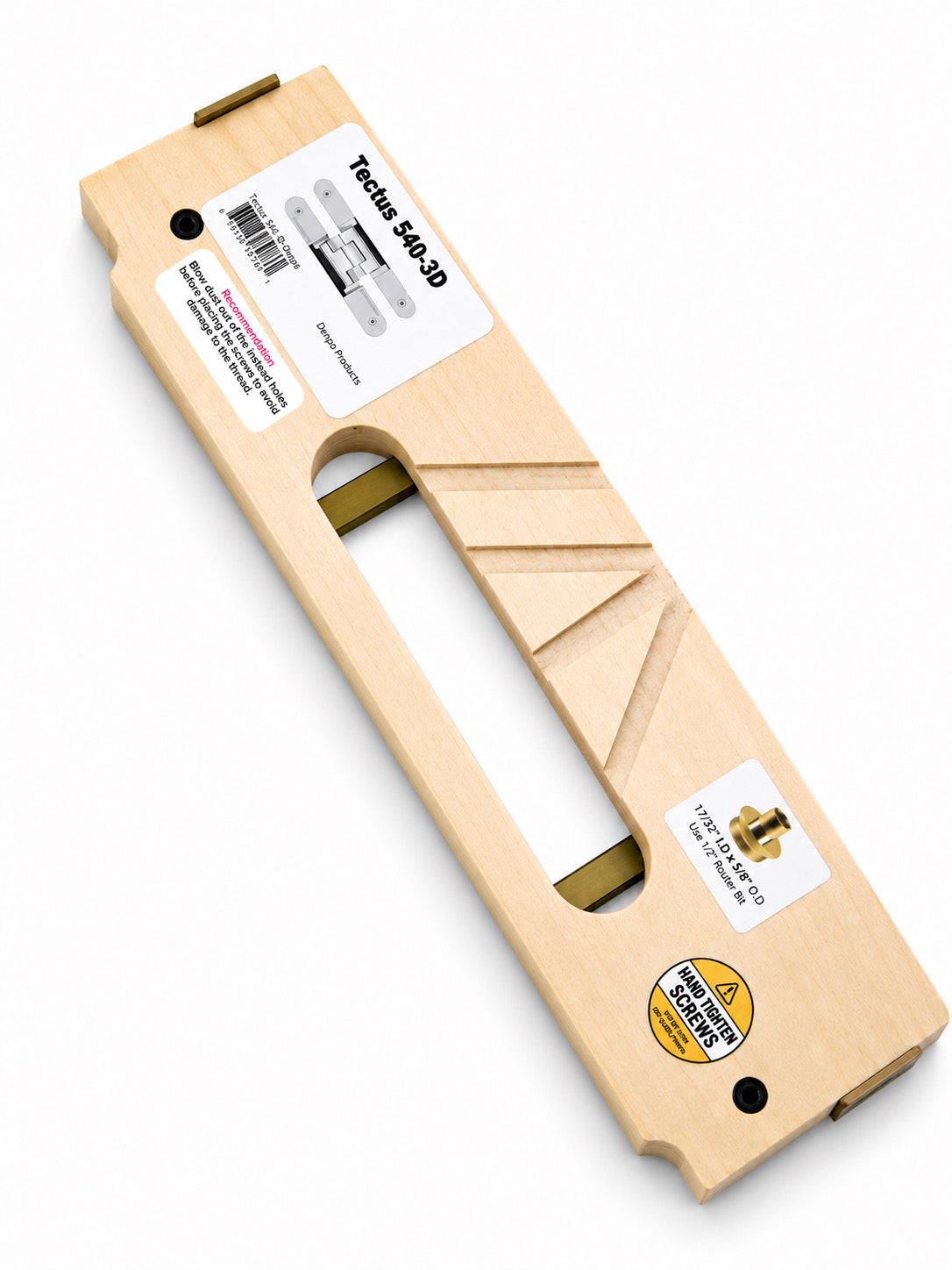

Tectus-540-3D Single Hinge Template
$160.00
The Denpo Tectus 540-3D Concealed Invisible Hinge Template is a CNC-cut precision routing system engineered specifically for installing Tectus 540 concealed hinges. Its all-in-one design allows installers to accurately route both the door and jamb using a single template.
Features
-
Designed specifically for Tectus 540-3D concealed hinges
-
Works on both doors and jambs
-
Performs shallow and deep mortise cuts
-
Designed for 1-3/4" thick doors
-
Constructed from durable 3/4" (18 mm) Russian Baltic Birch plywood, 13-ply
-
Hinge guides use 6-32 machine screws secured into metal inserts in the wood base for durability and repeatable adjustments.
ROUTER SETUP
Use with a 17/32" I.D. × 5/8" O.D. template guide and a 1/2" router bit.
