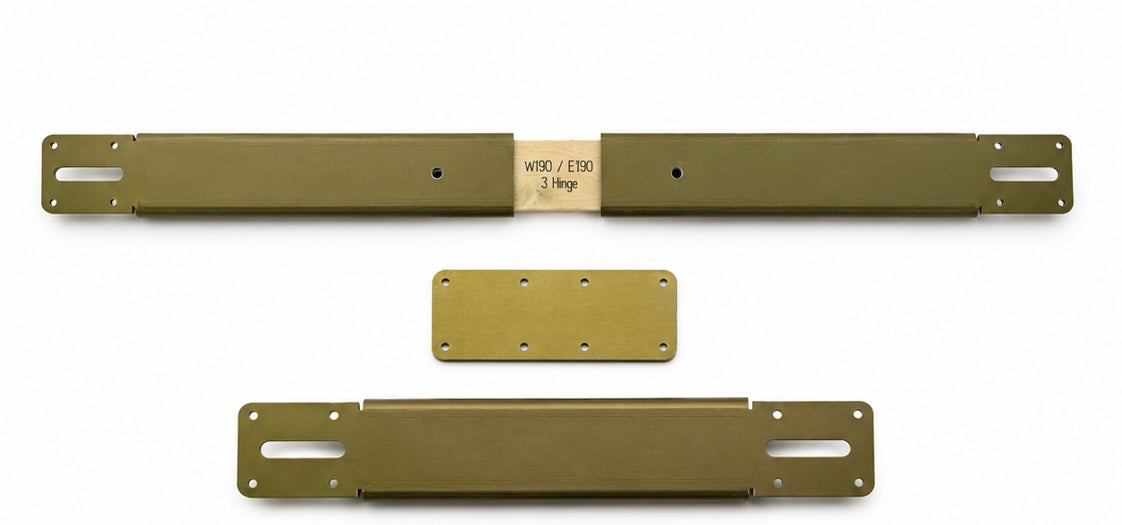

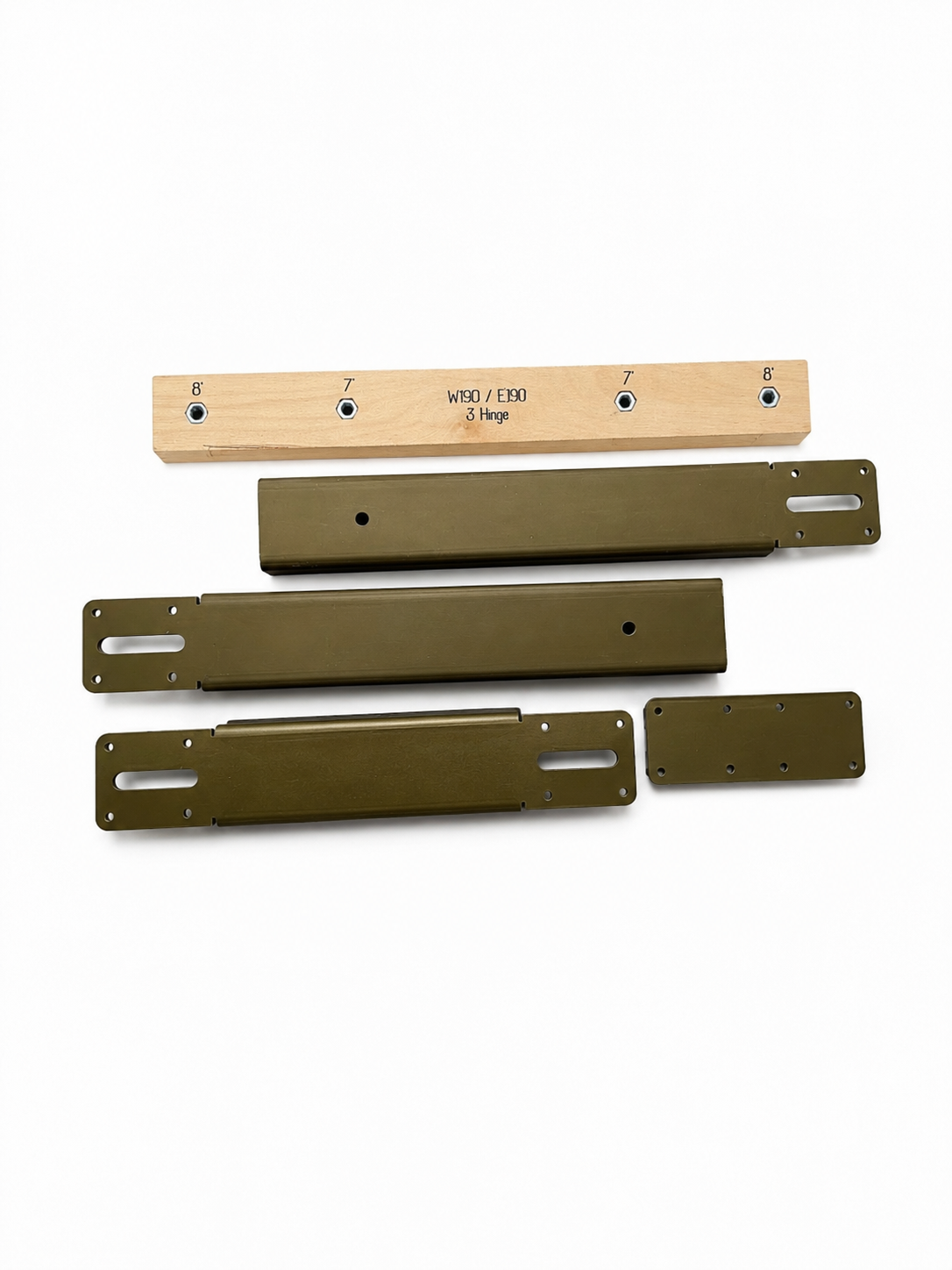

Sugatsune E190 Full Hinge Template 7’ to 8’ to 8’6” (3 Hinge)
$389.00
Skip to product information
Sugatsune E190 Full Hinge Template 7’ to 8’ to 8’6” (3 Hinge)
$389.00
Speed up your installation process with the ‘ALL-IN-ONE’ full hinge Sugatsune E190 Template :
- Accommodates for Interior or Exterior Doors
- Accommodates for Left and Right Doors
- Accommodates for Door and Jamb preparation by means of flipping long aluminum guides
- Slide small aluminum router guides left/right allows for Deep and Shallow Mortise cuts
- Aluminum extension bars are adjustable for door sizes of 7’ to 8’ to 8’6” (3 Hinges)
- Quick set-up Compression Spring Nails will fasten the template in place ensuring consistency and accuracy when routing
- Functions on Door Thicknesses of 1¾ and 2¼
For doors of 9’ or 10’ or ANY Hinge configurations contact denpoproductsone@aol.com
This unique template is made of 3/4″ Russian Baltic Birch Plywood 13 ply. 6/32 machine screws on the hinge guides are held by a metal insert into the wood base. Use template guide 17/32 I.D by 5/8 O.D with 1/2 router bit.
