Tectus 640-3D-A8 Invisible Hinge
$195.00

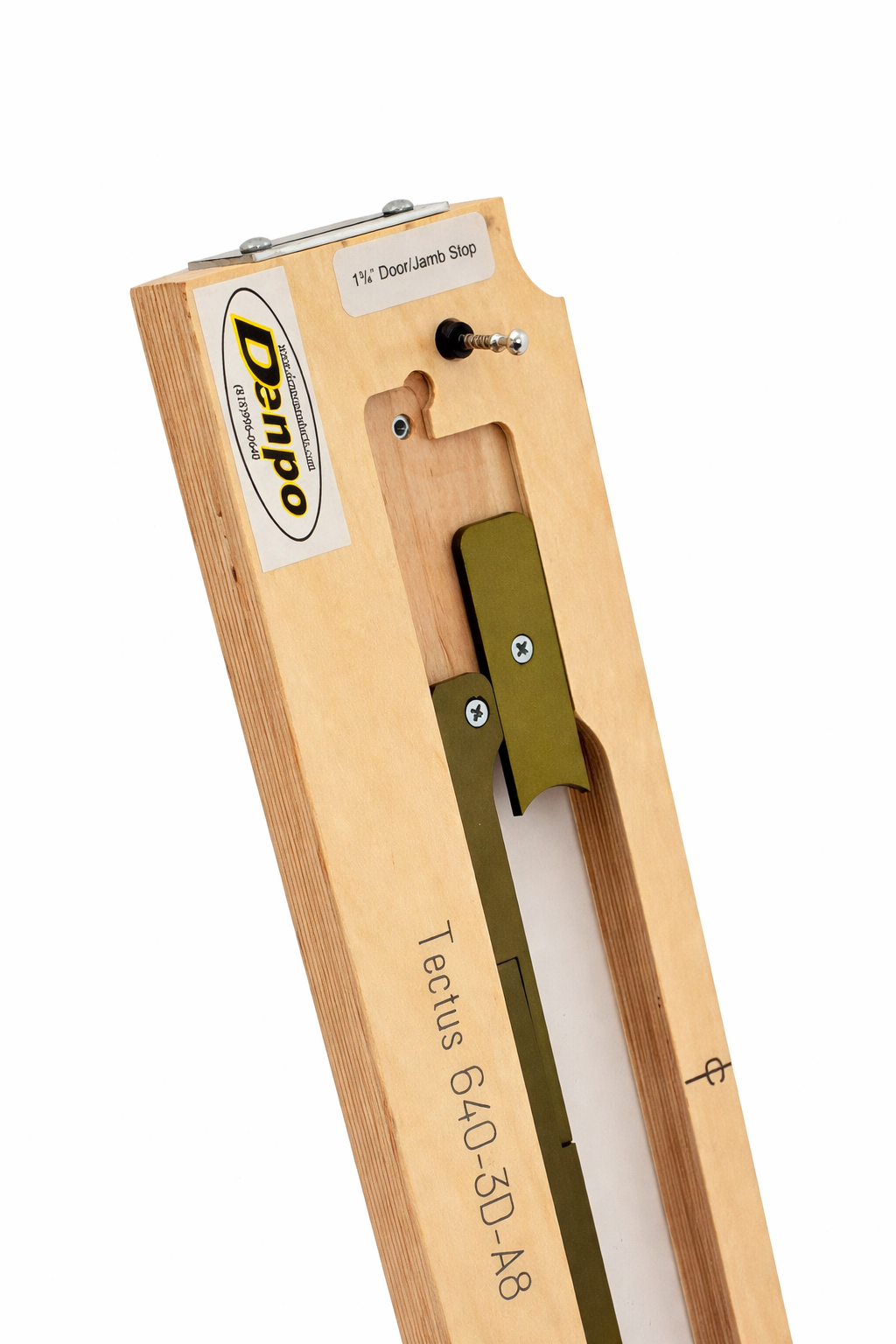

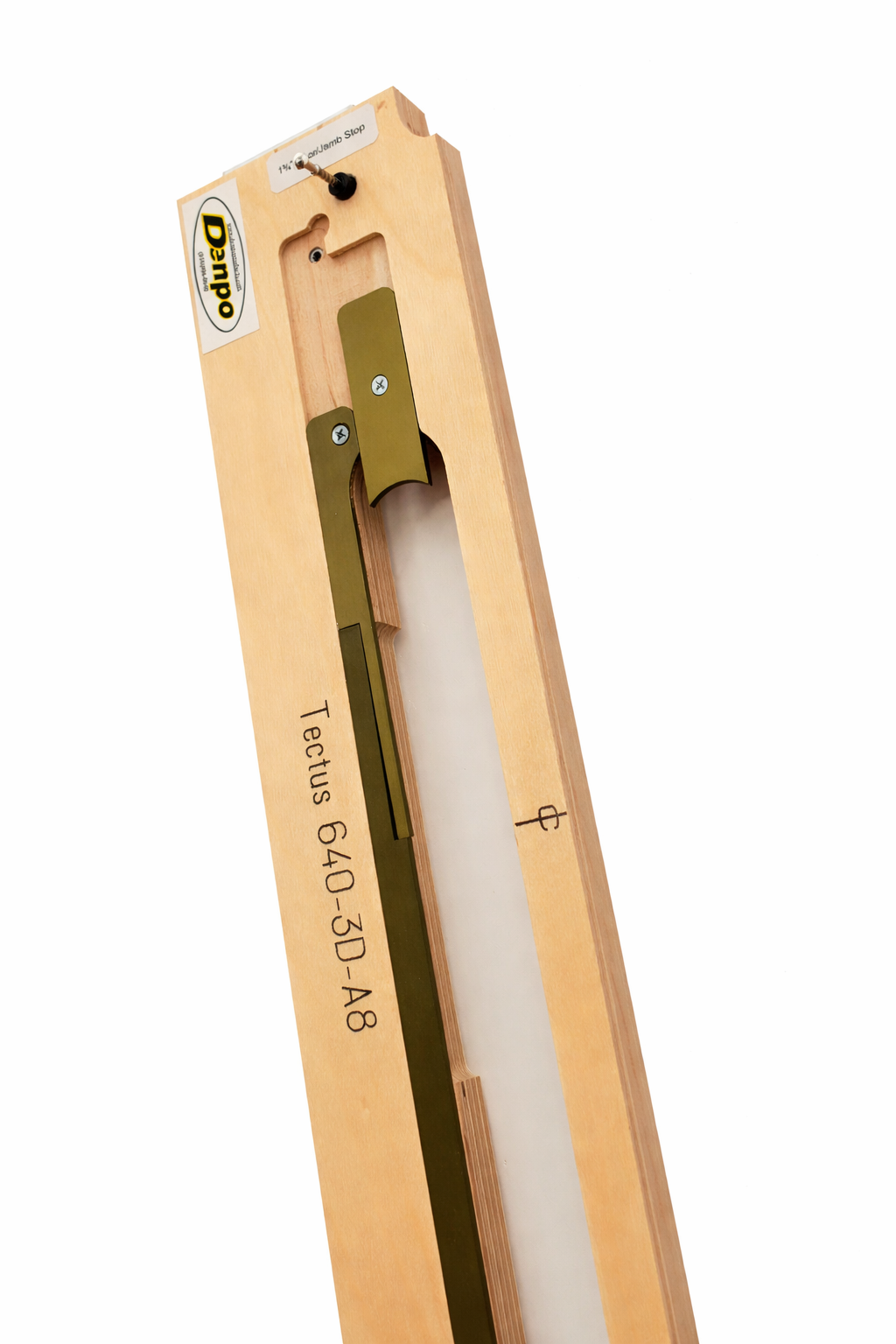

Speed up your installation process to work on the Invisible Tectus 640-3D-A8 hinge. The ALL-IN-ONE SINGLE HINGE TECTUS 640-3D-A8 Template:
- Accommodates for Interior or Exterior Doors
- Accommodates for Left and Right Doors
- Accommodates for Door and Jamb preparations
- By moving both long router guides outwards, you will be able to achieve the desired LIP CUTOUT
- Shifting the shorter router guides allows for Deep and Shallow Mortise cuts. Shift left-DEEP CUT / Shift right-SHALLOW CUT
- Compression Spring Nails will fasten the template in place ensuring consistency and accuracy
- Functions on Doors of 1¾” thick
This unique template is made of 3/4″ Russian Baltic Birch Plywood 13 ply. 6/32 machine screws on the hinge guides are held by a metal insert into the wood base.

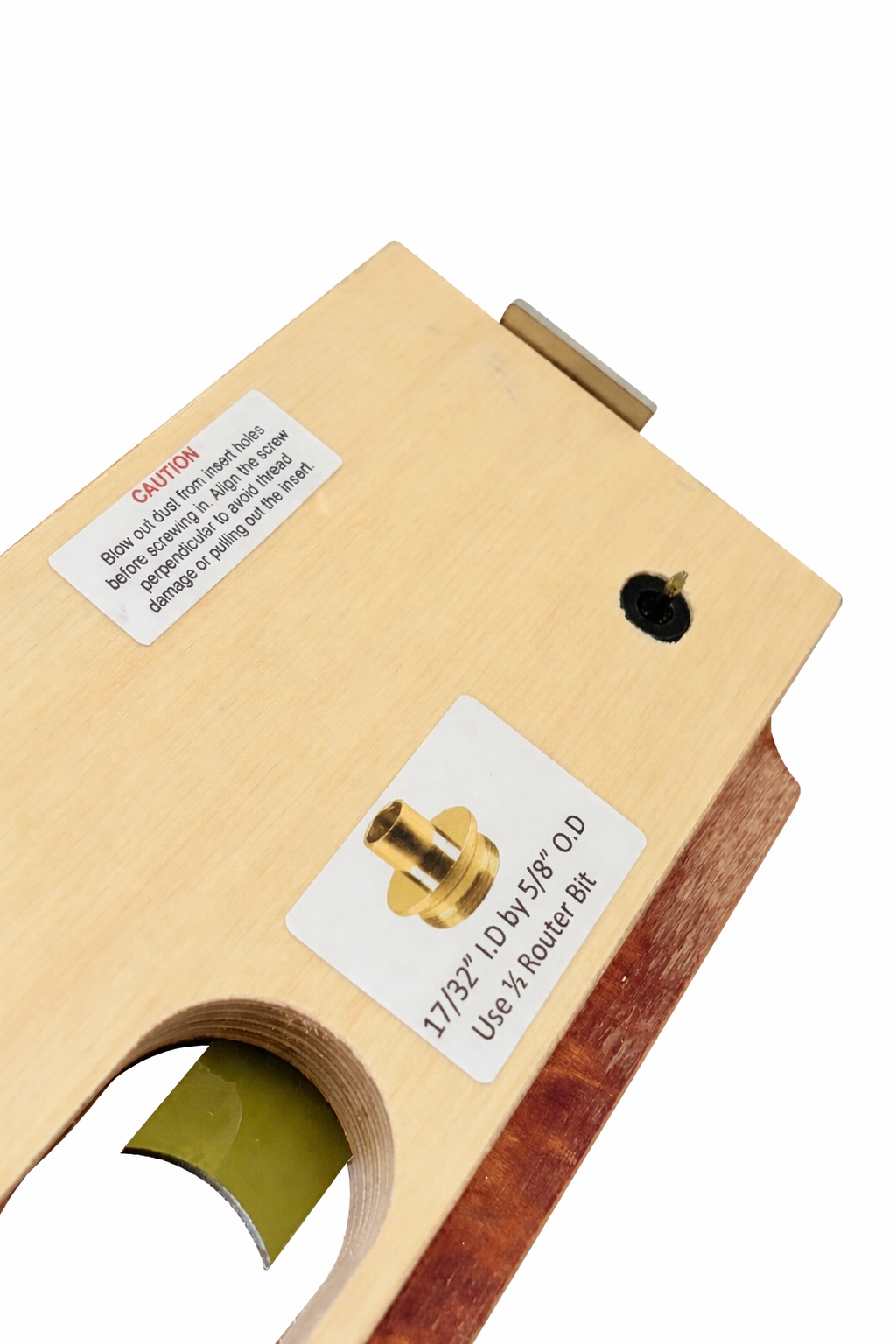

Use template guide 17/32 I.D by 5/8 O.D with 1/2 router bit
