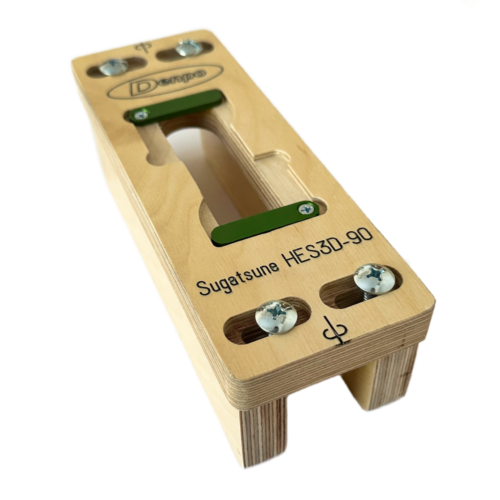

SUGATSUNE HES3D-90 Cabinet Concealed Jig

CONCEALED CABINET HINGE- SUGATSUNE HES3D-90 TEMPLATE

This template features a unique 3-sided design that wraps around cabinet doors or frames. With just this one template you instantly save time, minimizes costly errors and deliver consistent professional quality results.

Speed up your installation process with the SUGATSUNE HES3D-90 Template:

• Accommodates for cabinet door and cabinet frame preparations
• Accommodates for Left and Right cabinet doors
• Adjustable router guides allow for Deep and Shallow Mortise cuts
• Quick setup centerline mark for consistency and accuracy
• The jig’s 3-piece wrap system will clamp the template to door/frames and allows for adjustable cabinet door thickness.
• Denpo advice using your individual clamps to ensure extra security to the door and accuracy when routing.
• Adjustable for Door Thicknesses of 3/4 up to 1”
• JIG specifically for Sugatsune HES3D-90 Concealed Cabinet Hinge

-INSTALLATION INSTRUCTION PDF-

This unique template is made of 3/4″ Russian Baltic Birch Plywood 13 ply.
IMPORTANT: Use template guide 17/32 I.D by 5/8 O.D with 1/2 router bit.
